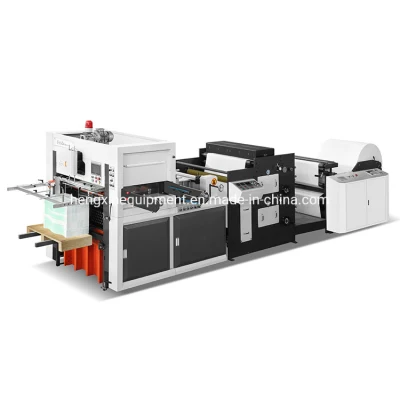

Paper Cup Printing and Die Cutting Machine
stars, based on 0 reviews
Quantity
Price
1+
$30000.00
Hengxin Printing Equipment Co., Ltd.
Product Description
Automatic rolling and pressing die cutting machine has the characteristics of high stability, high safety performance and high precision of finished products. It is widely used in paper packaging such as carton and carton. It uses microcomputer, man-machine control interface, servo positioning, AC frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correction deviation system, electromagnetic prompt, centralized oil lubrication, overload protection and unique transmission gear. This can ensure the smooth operation of paper return and paper feed, accurate positioning and correct take-up. The key parts and electrical appliances of the machine are imported brands. Such installation allows the machine to be under stable pressure, precise positioning, smooth movement, safety and reliability.
Technical Data:
3.Rectifying unit: This device is controlled by a motor and holds and adjusts the paper to the correct position (left or right)
Optional: The hydraulic shaftless paper feeder can support 3 ", 6 ", 12 ". The maximum diameter of roll paper is 1.6m.
Technical Data:
| Model | 970x550(640) | FDZ1080x640 | FDZ1200x640 | FDZ1400x780 | customized |
| Max cutting area | 940x520mm(610) | 1050x610mm | 1160x610mm | 1350x750mm | |
| Max paper width | 950mm | 1060mm | 1180mm | 1380mm | |
| Cutting precision | ±0.10-0.2mm | ||||
| Paper gram weight | 120-400g 120-600g | 120-600g | |||
| speed | 100-180 times/min | 80-130 times/min | |||
| Air pressure requirement | 0.6Mpa | ||||
| Air pressure consumption | 0.25m³/min | ||||
| Max cutting pressure | 150T/280T | 280T | |||
| Max roller diameter | 1600mm | ||||
| Total power | 11KW | 11KW | 14KW | ||
Machine structure:
1. Worm gear and worm transmission system: Perfect worm gear and worm transmission system, to ensure the mechanical high-speed operation of strong and stable pressure, so that cutting precision, low noise, stable operation, high cutting pressure main frame, frame and top frame are made of high strength ductile iron QT500-7, with high tensile strength, anti-deformation, anti-fatigue and other characteristics.
2. The coordination between the servo motor and the color label can realize the color recognition and ensure the precision of die cutting. Simply set the feeding length by microcomputer controller1. Worm gear and worm transmission system: Perfect worm gear and worm transmission system, to ensure the mechanical high-speed operation of strong and stable pressure, so that cutting precision, low noise, stable operation, high cutting pressure main frame, frame and top frame are made of high strength ductile iron QT500-7, with high tensile strength, anti-deformation, anti-fatigue and other characteristics.
3.Rectifying unit: This device is controlled by a motor and holds and adjusts the paper to the correct position (left or right)4.Die cutting department adopts pneumatic locking device, so as not to fall off from the machine.
Die cut plate: 65Mn steel plate heat treatment, high hardness and flatness.
Optional: The hydraulic shaftless paper feeder can support 3 ", 6 ", 12 ". The maximum diameter of roll paper is 1.6m.
- Model NO.:
- die cutting machine
- Computerized:
- Computerized
- Automatic Grade:
- Automatic
- Application:
- Paper Packaging Materials
- Transport Package:
- Wood Case
- Origin:
- China
- Production Capacity:
- 100 Set/Month
