3 Color Ceramic Bowl Pad Printer Plate Printing Machine
Hengxin Printing Equipment Co., Ltd.
Technical data :
Video Link: 3 color pad printer for ceramic plate and bowl - YouTube
Product Description
3 Color Pad Printer Printing Machine for Ceramic Dishes, Bowls, Saucer, Plates and Ceramic Tray
Applications:
This kind of pad printer is designed for ceramic bowl, ceramic platter, ceramic dish and ceramic mug printing. Usually it is for clay body or biscuit printing, use water base ink to print, after printing then put into firing.
Technical data :
1.Panasonic PLC controlled system with touch screen
2.Low noise, clean ink scraping, stable performance, simple operation
3.Fast printing speed, up to 400 pcs per hour for 3 color printing
4.High registration accuracy ± 0.8mm

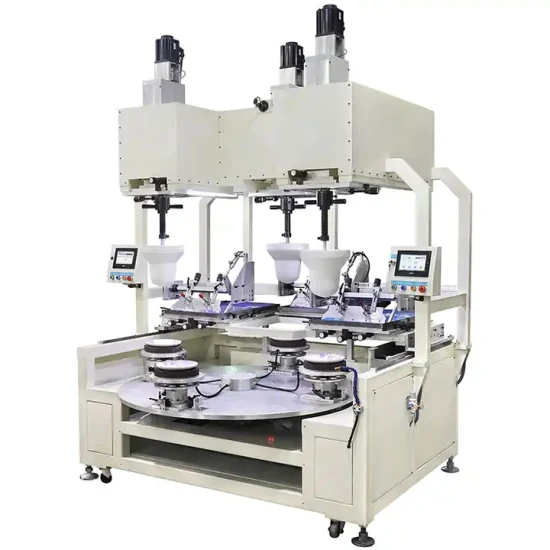

HC-203S is a pad printing machine designed for ceramic industry. It is a 3 color machine with servo motor driven and PLC with touch screen controlled. With 500x500mm open tray and 450x450mm print size, it widely used for ceramic or pottery clay body or biscuit printing, like tableware, plates, bowl, etc. Heavy duty machine base with adjustable print stroke and speed make machine in stable working and meet different printing requirements.
MODEL | HH-203S |
CONTROL SYSTEM | PLC and touch screen |
DRIVE SYSTEM | Servo Motor |
VOLTAGE | 220V 50Hz 1.5kw |
AIR PRESSURE INPUT | 5-7 bar |
PLATE SIZE | 500x500 mm |
MAX PRINT SIZE | 450x450 mm |
MAX PRINT SPEED | 350~400 pcs/hr |
WEIGHT | 1200 kg |
DIMENSION | 2300x1100x2400 mm |
- Model NO.:
- 203
- Automatic Grade:
- Semi-Automatic
- Steel Plate Size:
- 100*200mm
- Speed（pcs/hr）:
- 1800
- Transport Package:
- Wooden Case
- Origin:
- China
- Production Capacity:
- 100 Set/Month
